| Place of Origin: | China |
| Brand Name: | Flame |
| Certification: | ISO 9001:2000 |
| Model Number: | 560x1650mm Six-Roll Calender |
| 最小起订量： | one set |
|---|---|
| Price: | USD 550,000/set |
| Packaging Details: | Simple packaging |
| Delivery Time: | 150 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5 sets/150 days |
| Roller Type: | Г Type | Roller Line Speed: | 4～40 M/min |
|---|---|---|---|
| Roller Distance: | 0〜40mm. | Max Product Thickness: | 0.06〜0.80mm. |
| Max Product Width: | 1300mm | ||
| High Light: | 压延设备,calendering machine |
||
China Manufacturer Five-Roller rubber sheet calendering press machine
China Manufacturer Roller rubber sheet calendering press machine price
1) Roll-extrusion for rubber-sheet.
2）织物的粘附和摩擦橡胶。
Features of calender, rubber calender, rubber calenders:
1) Roll-extrusion for rubber-sheet.
2）织物的粘附和摩擦橡胶。
橡胶压延机技术数据：
| 橡胶计数器技术数据 | |||||
| Specification | Roller | 心肌梗死d-roller liner | 厚度 | calendering | Motor |
| Type | dia.×length(mm) | Speed (m/min) | calendering(mm) | width | 电力（kw） |
| XY-3I1120 | 360×1120. | 22.5 | ≥0.20mm | 900 | 18.3/44 |
| XY-3I1400 | 400×1400 | 8.8~26.39 | ≥0.20mm | 1200. | 18.3/55 |
| XY-4F1120 | 360×1120. | 7~21 | ≥0.20mm | 900 | 18.3/55 |
| XY-4F1400 | 400×1400 | 8.8×26.39 | ≥0.20mm | 1200. | 25/75 |
| XY-3L1120 | 360×1120. | 2〜20 | ≥0.20mm | 900 | 37 |
| XY-5T635 | 240×635 | 9 | ≥0.20mm | 550 | 7.5 |
| XY-5T700 | 230×700 | 1.5~13 | ≥0.20mm | 600 | 7.5 |
| XY-4 1730 | 610×1730 | 5.4~54 | ≥0.20mm | 1500 | 160 |
| XY-4S1730 | 610×1730 | 5~50 | ≥0.20mm | 1600 | 75×4 |
| XY-4S1800 | 710×1800 | 5~50 | ≥0.20mm | 1600 | 110×2 132×2 |
| XY-4T1450 | 510×1450 | 4.5〜45 | ≥0.20mm | 1250 | 45×2 55×2 |
4. Applications:

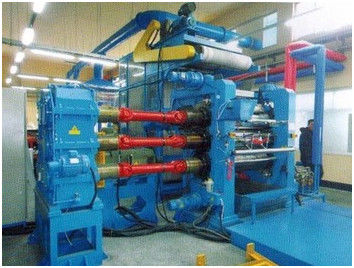

Fix(Six) Roll Calender is Applicated in producing high grade rigid transparent PVC sheet, colorful PVC
sheet, flexible PVC sheet,such as food package,medicine package and other uptake plastic container.
5. Specifications:
Electrical part instruction: Knob adjust, CPU control
（1）频率ABB品牌。
⑵ F (2) requency motor all use ABB motor.
（3）电气部件：CPU全部使用西门子
(4)Speed adjust:Speed adjust: Machine linkage control and host machine control, auxiliary machine control, and host machine, auxiliary machine individual control.
6. Competitive Advantage:
a. The rollers are drilled roll with hot-grinded, single motor single transmission with a stable and adjustment speed work. The machine use roller bearing which can bear high temperature. Sealing type is labyrinth.
b. The film can infinite extend, with a high work speed, high produce capacity, good quality and uniform thickness.
c. The main machine has roll crossing, preloading and anti-bending device, the nip adjustment speed can be adjusted, the electric parts has PLC control.
7. Service:
1. Oversea installation guide.
2. Oversea test running
3. Ovsersea worker training
4. Technical support
5. Spare parts supply
6. Technical operation support
7. Formula and processing support
8. Option
This sysytem is composed of five-rollers calender, multiple-roller lead device and auxiliary cooling machine
9. Commercial terms
1. Payment: 30% by T/T as advance payment, balance(70%) by T/T before shipment
2. Lead Time: 120 days after receiving the advance payment
3. Transportation: container, simple package ( PE film, salver)
4.Warranty period: From the day of the use of the machine in the buyer’s factory:
（1）机械部件：12个月
(2) The electrical Parts: 6 months
5. Installations and Commissioning
(1) Up to date commissioning has been made before shipment
(2) Overseas Commissioning and charges one or two technicians will be sent to the buyer to guide the
installation and commissioning of the equipment if the customer requests.
Customers pay the charge of our technicians.
(1) Round-trip Airplane Ticket
(2) Charges of transportation, accommodation and communication
（3）一个人为技术人员的津贴为80美元。
（4）需要翻译。
6. Spare parts:
客户需要备件一年，我们建议客户应该购买备件。（将提供配件清单。）
7. English manual, Figuration drawing, and footing drawings are provided.
